SHA type low frequency adjustable spring vibration isolators manufactured by Shanghai Songjiang Group which specializes in manufacturing pipeline expansion joints and spring vibration isolators has the characteristics of easy installation. There are screws and screw holes at the upper and lower ends of the spring vibration isolators, and a height adjustment nut at the upper end of the spring, which can be freely adjusted according to the installation needs. There are lateral rubbers at both ends of the spring vibration isolators. Damping, which increases the vertical damping coefficient, improves the longitudinal and lateral stiffness, and ensures that the equipment can run more safely.

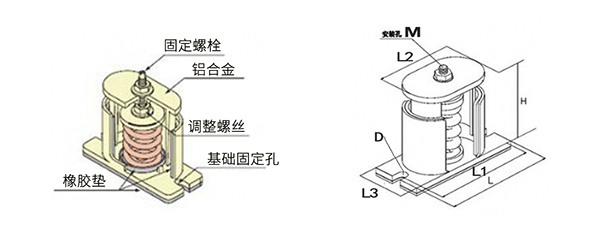

SHA Type Low Frequency Adjustable Spring Vibration Isolator Structure

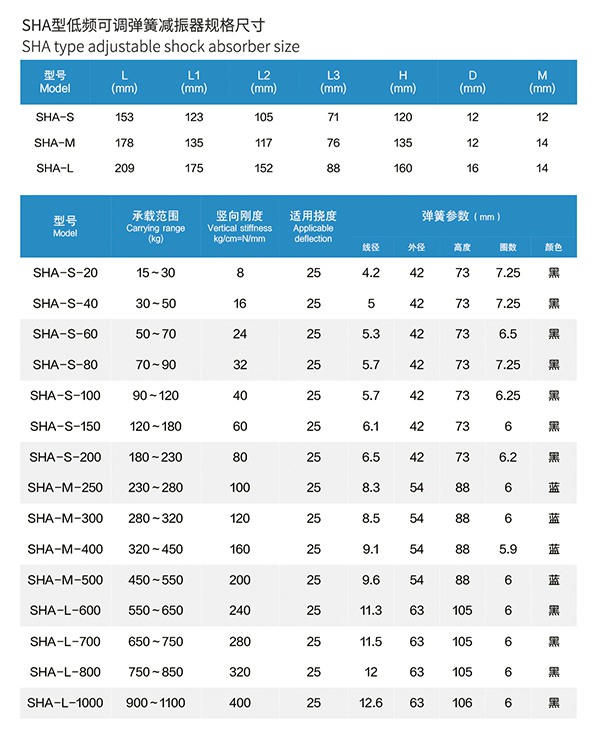

SHA Type Low Frequency Adjustable Spring Vibration Isolator Parameter

SHA type low frequency adjustable Spring Vibration Isolator features:
1. The body material is aluminum alloy.
2. Special structure design, the height can be adjusted according to actual needs.
3. The appearance is light and sturdy, and the installation is easy; it is suitable for all kinds of mechanical internal vibration isolation devices.
4. The springs are all heat treated, ED rusted, painted or sprayed.
5. The load deflection of 25mm can effectively eliminate mechanical vibration.
