Shanghai Songjiang Group Introduce to you: SHM Type Spring Vibration Isolator Information. Shanghai Songjiang Group Manufacture many types of Spring Vibration Isolator, which has good weather resistance and good anti-vibration effect.

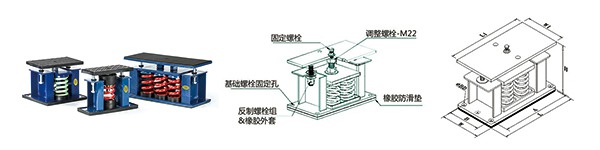

SHM Type Spring Vibration Isolators Stucture

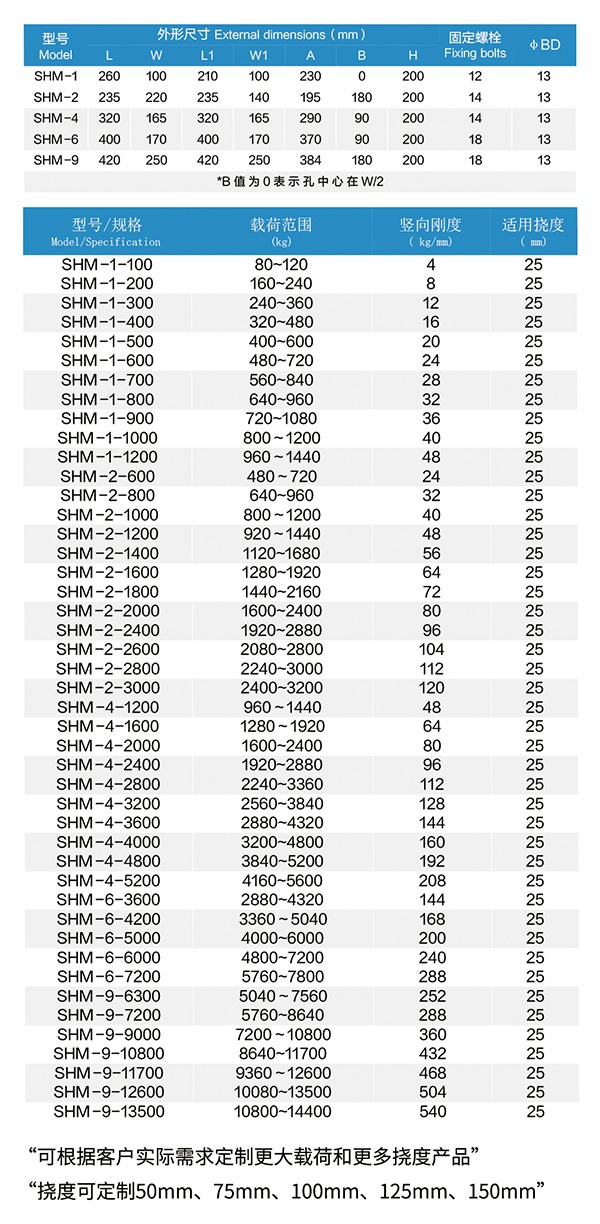

SHM Type Spring Vibration Isolators Parameter

1. The spring is designed with low frequency value and is sprayed with plastic, which has good weather resistance and good anti-vibration effect.
2. The top and bottom are made of anti-skid and wear-resistant rubber and fixing bolts, which greatly improves the safety performance.
3. The installation is simple and the level and height can be adjusted according to actual needs.
4. It can effectively isolate the vibration of large power equipment such as chillers, cooling towers, heat pump units, generator sets, etc., and protect and extend their service life. Note: -1 is one set of springs, -2 is two sets of springs, -4 is four sets of springs, -6 is six sets of springs, -9 is nine sets of springs.
