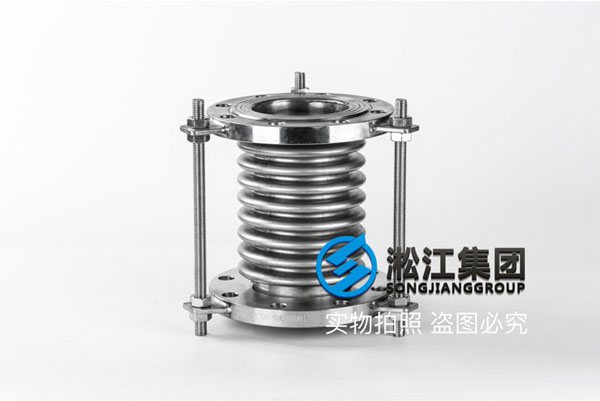

Stainless Steel Pipeline Expansion Joint “with excellent flexibility”
Shanghai Songjiang Group Stainless Steel Pipeline Expansion Joint has excellent flexibility, corrosion resistance, high-temperature resistance, and high-pressure resistance, Stainless Steel Pipeline Expansion Joint is especially suitable for flexible joints of various pumps, valves, etc. with displacement and vibration.
Stainless Steel Pipeline Expansion Joint also known as Metal Expansion Joint, is a kind of compensation element. Use the effective expansion and contraction deformation of the bellows of its working body to absorb the dimensional changes of pipelines, conduits, containers, etc. caused by thermal expansion and contraction, or to compensate for the axial displacement of pipelines, conduits, containers, etc. It can also be used for noise reduction and vibration reduction.
Metal Expansion Joint can be connected in any direction in the pipeline to compensate for temperature, absorb vibration, reduce noise, change the direction of medium conveying, Eliminate the mechanical displacement between pipelines or between pipelines and equipment, etc.
Bellows body: To have a longer service life, all of them are made of stainless steel 304, which supports various spectrometer detection, and the thickness is all thicker than the industry standard.
Connecting flange: The flanges are all made of authentic Shanxi forging materials, which are very good in terms of strength and sealing. Do not compare the cast steel and steel plate steel flanges on the market, there is no comparability.
Welding consumables: All the welding consumables are higher than the base metal grade standard so that the welding point is firmer.
Limiting lugs: All lugs are produced in enlarged and thickened sizes. Each model can be compared one-to-one with the same model in the same industry. This is the so-called no comparison, no harm.
Limit screw: The screw is all made of 8.8-grade high-strength galvanized, which is 100% to ensure the comprehensive strength of the product. Do not compare it with the 4.8-grade on the market, it is meaningless.
Production standard: Shanghai Songjiang Group has passed the TUV Rheinland certification, and strictly follows the production requirements of pressure pipelines, so that every Stainless Steel Pipeline Expansion Joint product that leaves the factory is 100% qualified.
